Network Topology

Physical Topology

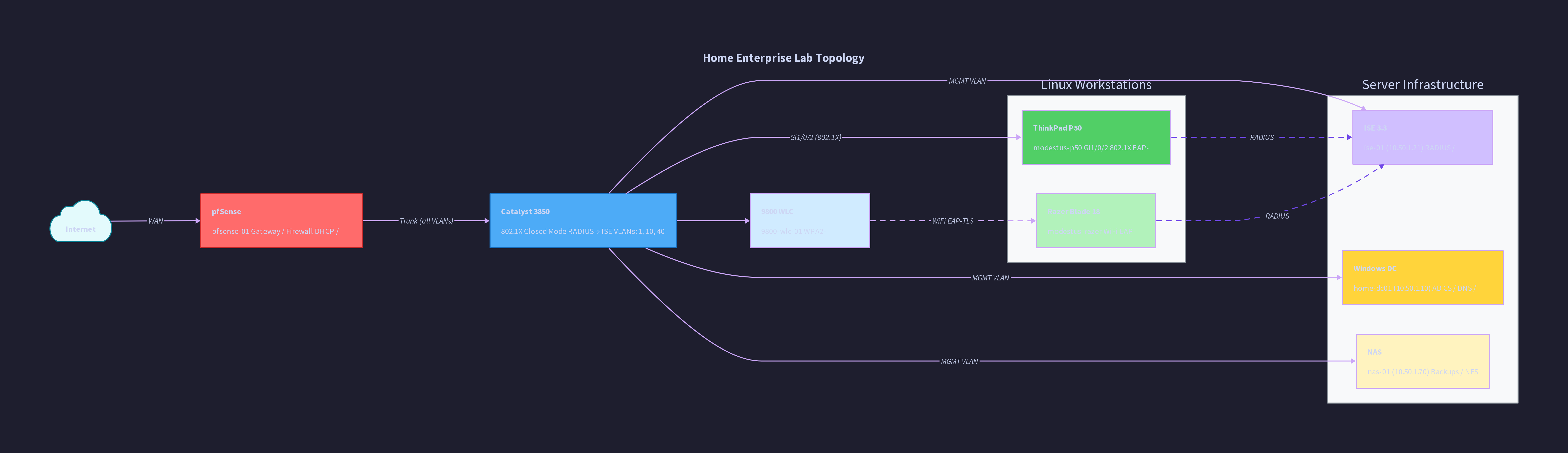

Lab Topology

Switch Port Assignment

Port Connected Device Configuration

Gi1/0/1

Uplink to pfSense

Trunk (all VLANs)

Gi1/0/2

ThinkPad P50 (Linux)

802.1X Closed Mode

Gi1/0/3-8

Available

Default template

VLAN Configuration

# View VLANs
netapi ios exec "show vlan brief"

# Expected output
VLAN Name                             Status    Ports
---- -------------------------------- --------- ---
1    default                          active    Gi1/0/1
40   RESEARCH_VLAN                    active    Gi1/0/2

IP Addressing

Subnet Gateway DHCP Range Purpose

10.50.1.0/24

10.50.1.1

.100-.200

Management

10.50.40.0/24

10.50.40.1

.100-.200

Research VLAN
